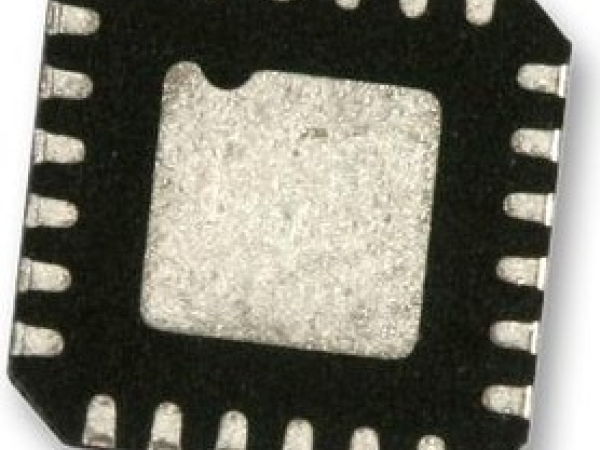

Микросхема AD7091R-8BCPZ

О товаре

Architecture SAR Base Product Number AD7091 -> Configuration S/H-ADC Data Interface SPI, DSP ECCN EAR99 HTSUS 8542.39.0001 Input Type Single Ended Moisture Sensitivity Level (MSL) 3 (168 Hours) Mounting Type Surface Mount Number of A/D Converters 1 Number of Bits 12 Number of Inputs 1 Operating Temperature -40В°C ~ 125В°C Package Tray Package / Case 24-WFQFN Exposed Pad, CSP Ratio - S/H:ADC 1:1 REACH Status REACH Unaffected Reference Type Supply RoHS Status ROHS3 Compliant Sampling Rate (Per Second) 1M Supplier Device Package 24-LFCSP-WQ (4x4) Video File High Speed Converters by Analog Devices Voltage - Supply, Analog 2.09V ~ 5.25V Voltage - Supply, Digital 2.09V ~ 5.25V Количество Выводов 24вывод(-ов) Линейка Продукции Octal 12-bit SAR ADCs Максимальная Рабочая Температура 125 C Максимальное Напряжение Питания 5.25В Минимальная Рабочая Температура -40 C Минимальное Напряжение Питания 2.7В Разрешение (бит) 12бит Стиль Корпуса АЦП / ЦАП LFCSP Тип Входного Канала Несимметричный Тип Напряжения Питания Однополярный Уровень Чувствительности к Влажности (MSL) MSL 3-168 часов Частота Выборки 1Мвыборок/с Analog Supply Voltage: 2.7 V to 5.25 V Architecture: SAR Brand: Analog Devices Development Kit: EVAL-AD7091R Digital Supply Voltage: 1.8 V to 5.25 V DNL - Differential Nonlinearity: 0.9 LSB Factory Pack Quantity: Factory Pack Quantity: 490 FPBW - Full Power Bandwidth: 1.5 MHz Gain Error: 0.1%FS INL - Integral Nonlinearity: 0.8 LSB Input Type: Single-Ended Interface Type: 3-Wire, QSPI, SPI Manufacturer: Analog Devices Inc. Maximum Operating Temperature: +125 C Minimum Operating Temperature: -40 C Moisture Sensitive: Yes Mounting Style: SMD/SMT Number of Channels: 8 Channel Number of Converters: 1 Converter Package / Case: LFCSP-24 Packaging: Tray Pd - Power Dissipation: 2.8 mW Product Category: Analog to Digital Converters-ADC Product Type: ADCs-Analog to Digital Converters Reference Type: External, Internal Reference Voltage: 2.5 V Resolution: 12 bit Sampling Rate: 1 MS/s Series: AD7091R-8 SFDR - Spurious Free Dynamic Range: -81 dB Shutdown: Shutdown SINAD - Signal to Noise and Distortion Ratio: 69 dB SNR - Signal to Noise Ratio: 70 dB Subcategory: Data Converter ICs THD - Total Harmonic Distortion: -80 dB Type: Ultralow Power Корпус LFCSP-24 Differential Input No Differential Linearity Error \'±0.9LSB Digital Supply Support NO Dual Supply Voltage (Max) Not Required(V) Dual Supply Voltage (Min) Not Required(V) Dual Supply Voltage (Typ) Not Required(V) Full Scale Error \'±0.1%FSR Input Polarity Unipolar Input Signal Type Single-Ended Integral Nonlinearity Error \'±1.25LSB(LSB) Mounting Surface Mount No Missing Codes 12 Number of Elements 1 Number of Input Channels 8 Operating Temp Range -40C to 125C Operating Temperature Classification Automotive Package Type LFCSP EP Packaging Tape and Reel Pin Count 24 Power Dissipation 3.4(W) Power Supply Requirement Single Rad Hardened No Rated Input Volt 2.5V Reference Voltage INTERNAL/EXTERNAL(V) Resolution 12Bit Sample and Hold YES Sample Rate 1MSPS(KSPS) Signal to Noise Ratio 70DB(TYP) Single Supply Voltage (Max) 5.25(V) Single Supply Voltage (Min) 2.7(V) Single Supply Voltage (Typ) 3.3/5(V) Single-Ended Input YES
